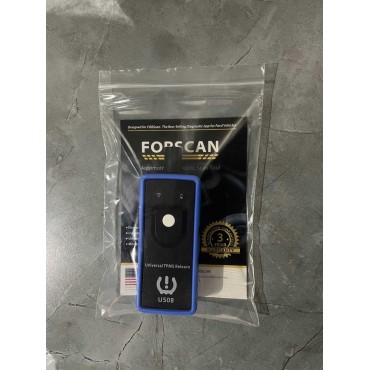

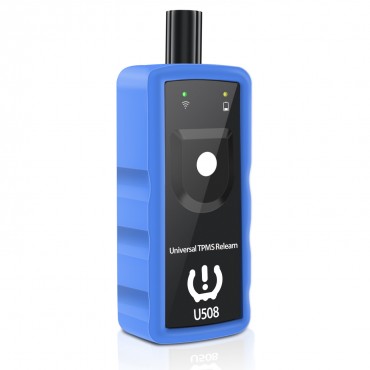

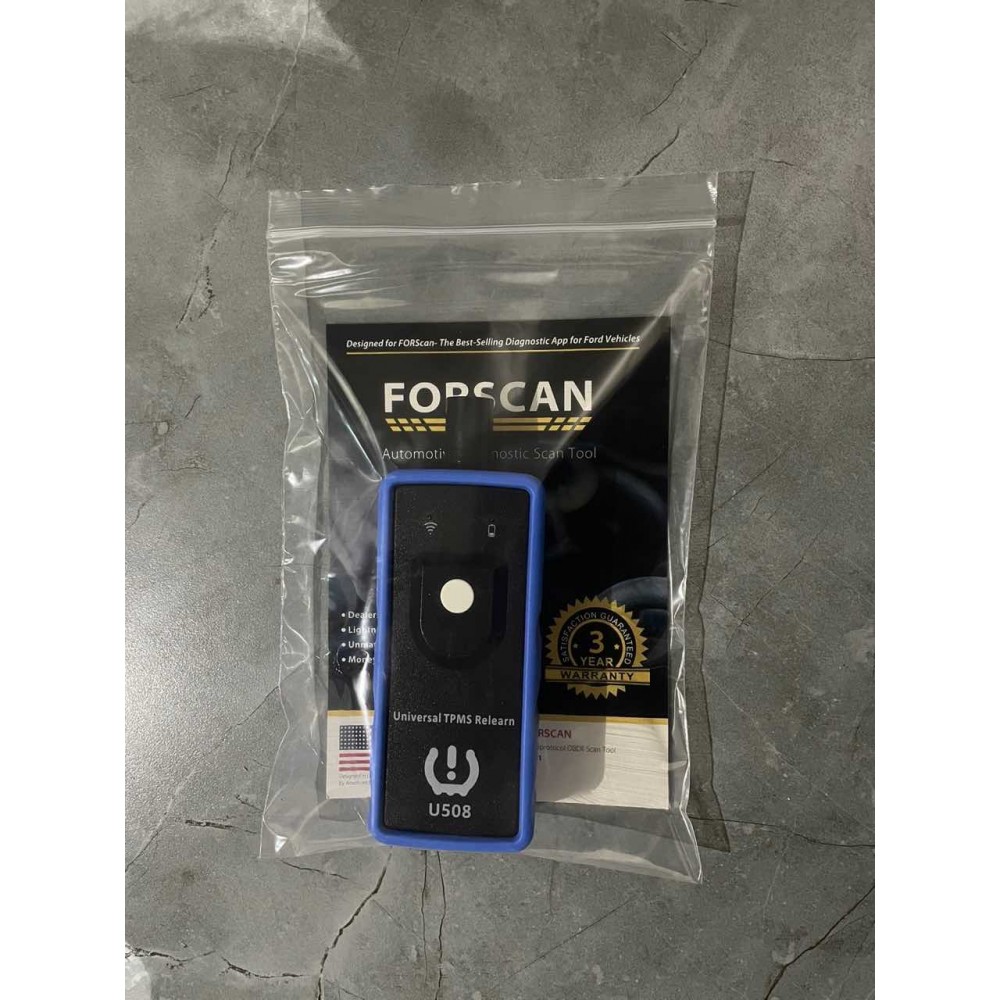

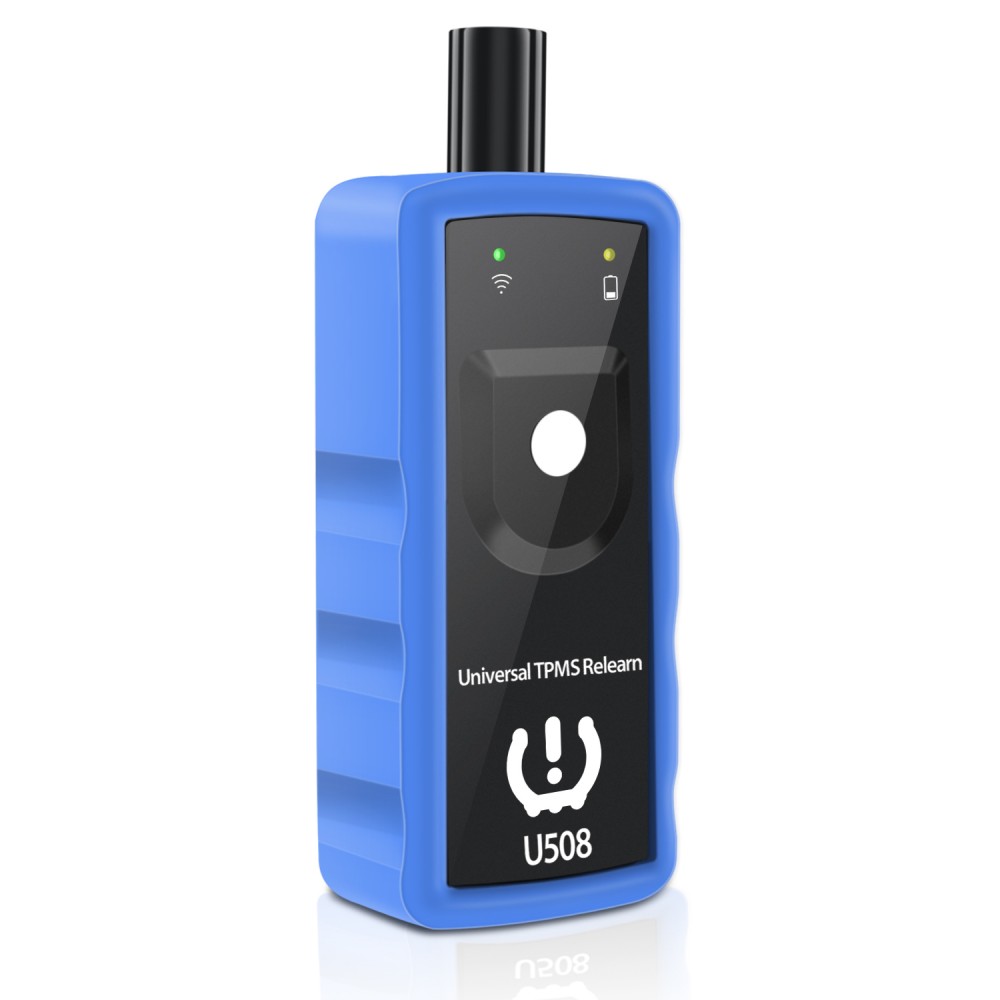

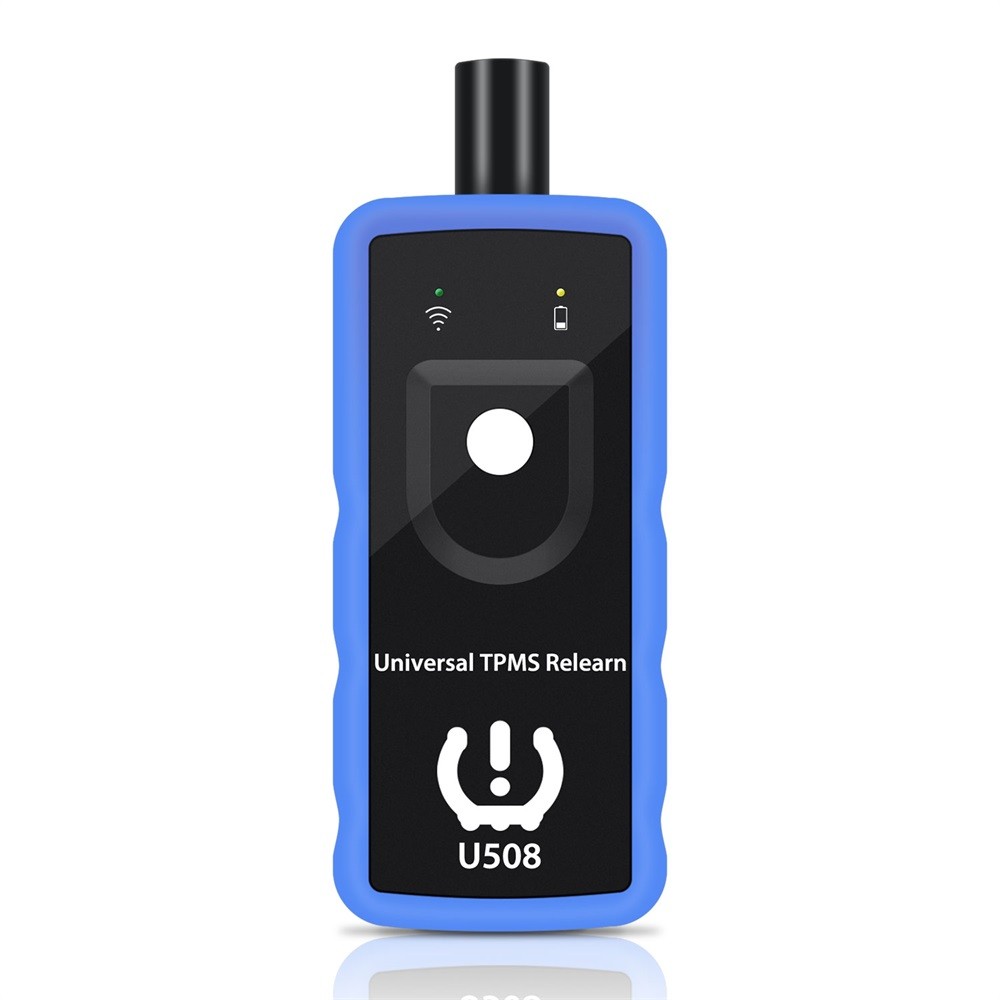

FORSCAN U508 Universal TPMS Relearn Tool

The FORSCAN U508 Universal TPMS Reset Tool "wakes up" tire pressure monitoring system (TPMS) sensors mounted to the vehicle's wheel.

WIDE VEHICLE COVERAGE: Universal TPMS relearn tool is compatible with most vehicles brands: Alfa Romeo, BMW, Buick, Cadillac, Chevrolet, Chrysler, Dodge, Fiat, Ford, GMC, Hummer, Hyundai, Infiniti , Isuzu, Jeep Kia, Lincoln, Lotus, Maserati,  Mercedes-Benz,  Mercury , Mitsubishi, Pontiac, Ram, Retrofit, Rolls Royce, Saab, Saturn, Subaru, Suzuki, Volvo etc, support model year up to 2019. [Before purchasing, please confirm your car tires equipped with TPMS sensors and the brand included in support vehicles list.]

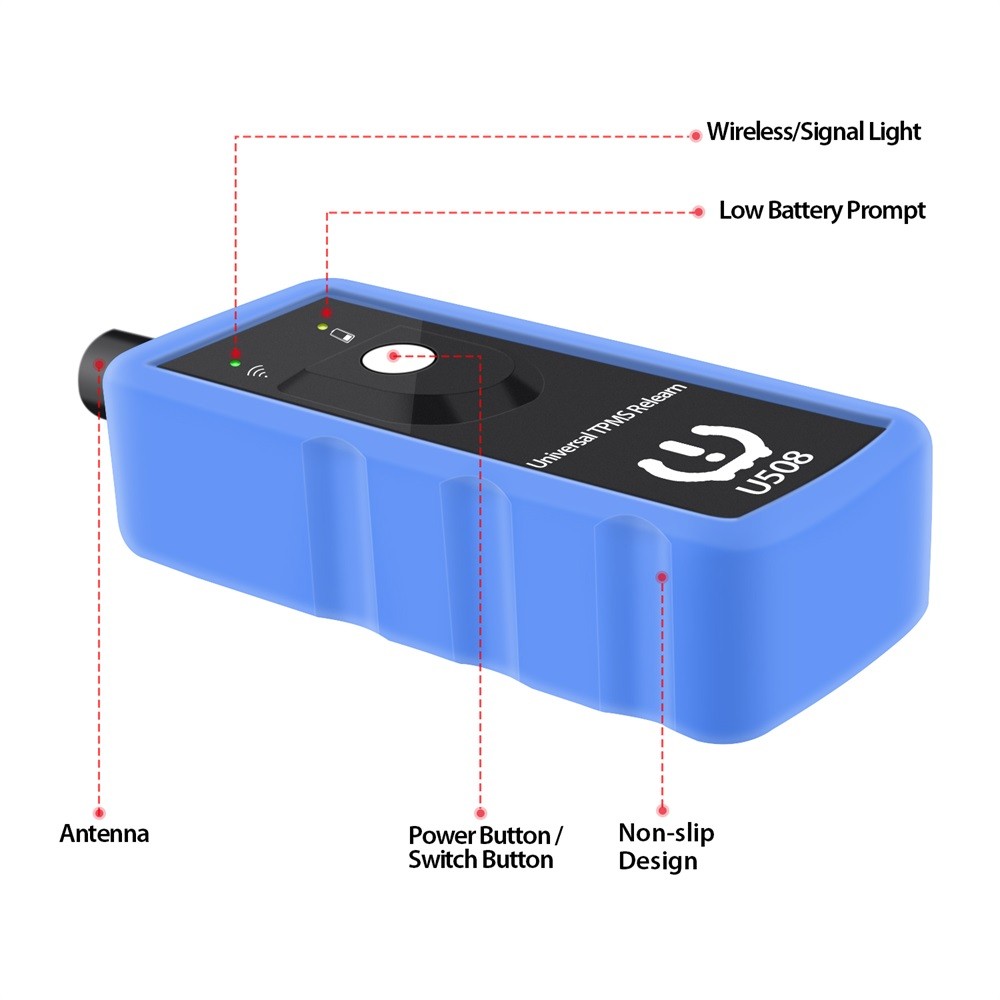

HUMANIZED DESIGN: Single operation buttons help you better to relearn tpms sensor.

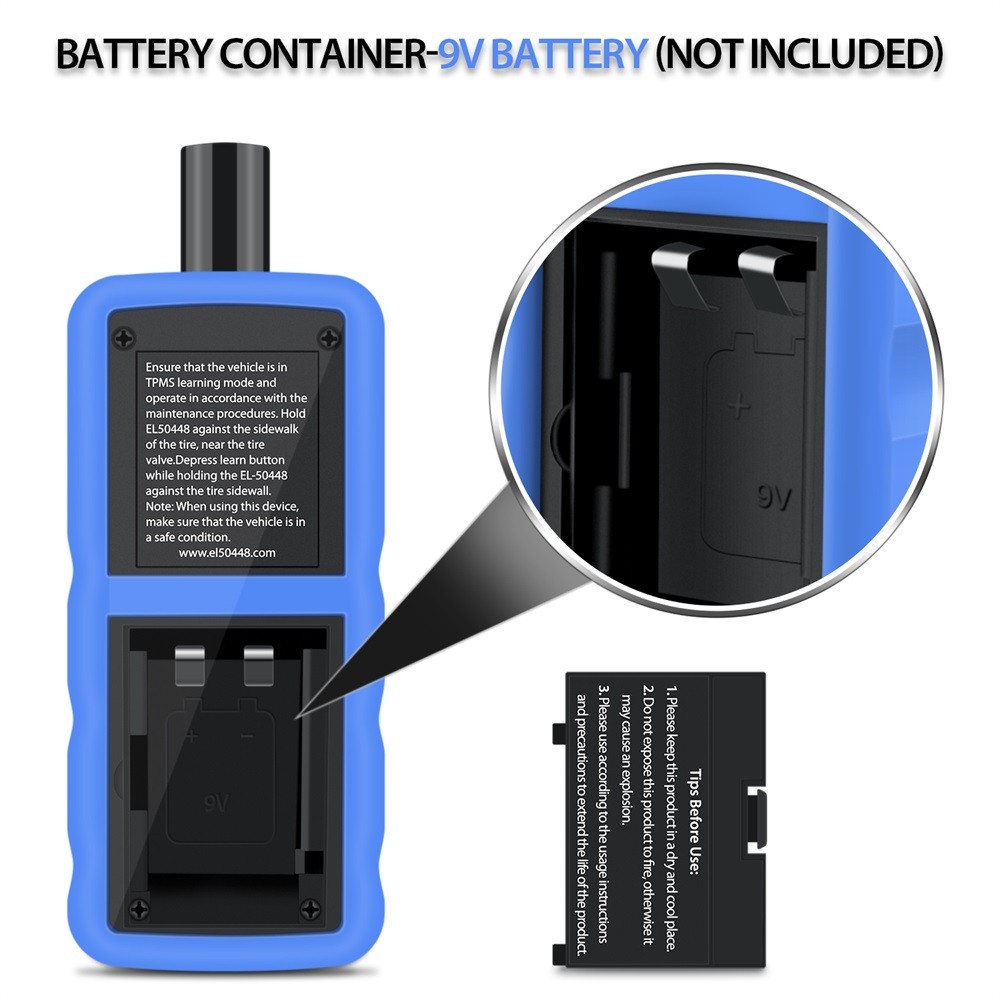

EASY TO USE: No need install any software, only need install a 9V battery, new and fully charged .

INSTRUCTIONS

While holding the tool next to the side wall of the tire above the sensor, press and hold the button to trigger the sensor (You can also press the tool directly against the sidewall of the tire). An orange light will illuminate on the tool.

Continue to hold the button down until successful signal transfer to the vehicle's ECU, diagnostic station or until the vehicle's horn "beeps".

Support List:

For Alfa Romeo 4C 2013-2019

For Alfa Romeo MiTo 2 2013-2016

For Aston Martin DBS Superleggera 2018

For BMW 5 Series (G30 G31) 2017-2019

For BMW 7 Series (G11 G12) 2016-2019

For BMW M5 2018-2019

For BMW X3 (G01) 2017-2019

For BMW MOTORCYCLE ALL 2007-2018

For Buick Allure 2007-2011

For Buick Cascada 2016-2019

For Buick Enclave 2008-2019

For Buick Encore 2013-2019

For Buick Envision 2015-2019

For Buick LaCrosse 2006-2019

For Buick LeSabre 2007

For Buick Lucerne 2007-2011

For Buick Regal 2011-2019

For Buick Verano 2012-2018

For Cadillac ATS 2013-2019

For Cadillac CT6 2016-2019

For Cadillac CTS 2008-2019

For Cadillac Deville 2001-2005

For Cadillac DTS 2006-2011

For Cadillac ELR 2014-2016

For Cadillac Escalade 2001-2006

For Cadillac Escalade 2007-2019

For Cadillac Seville 2001-2004

For Cadillac SRX 2007-2016

For Cadillac STS 2005-2008

For Cadillac STS 2009-2011

For Cadillac XLR 2004-2009

For Cadillac XT4 2019

For Cadillac XT5 2017-2019

For Cadillac XTS 2013-2019

For Chevrolet Avalanche 2004-2006

For Chevrolet Avalanche 2007-2013

For Chevrolet Aveo 2002-2011

For Chevrolet Aveo 2018

For Chevrolet Bolt EV 2017-2019

For Chevrolet Camaro 2010-2019

For Chevrolet Caprice 2011-2017

For Chevrolet Captiva Sport 2012-2017

For Chevrolet Cobalt 2008-2010

For Chevrolet Colorado 2006-2012

For Chevrolet Colorado 2015-2019

For Chevrolet Corvette 1997-2000

For Chevrolet Corvette 2001-2004

For Chevrolet Corvette 2005-2009

For Chevrolet Corvette 2010-2019

For Chevrolet Cruze 2011-2019

For Chevrolet Equinox 2007-2019

For Chevrolet Express Series 2007-2019

For Chevrolet HHR 2008-2011

For Chevrolet Impala 2006-2019

For Chevrolet Malibu 2008-2019

For Chevrolet Monte Carlo 2006-2007

For Chevrolet Orlando 2012-2014

For Chevrolet Silverado 2004-2006

For Chevrolet Silverado 2007-2019

For Chevrolet Sonic 2012-2019

For Chevrolet Spark 2012-2019

For Chevrolet SS 2014-2017

For Chevrolet Suburban 2004-2006

For Chevrolet Suburban 2007-2019

For Chevrolet Tahoe 2004-2006

For Chevrolet Tahoe 2007-2019

For Chevrolet Traverse 2009-2019

For Chevrolet Trax 2013-2019

For Chevrolet Uplander 2008-2009

For Chevrolet Volt 2010-2019

For Chrysler 300 2009-2019

For Chrysler 300M 2002-2004

For Chrysler Concorde 2002-2004

For Chrysler Crossfire 2004-2008

For Chrysler Intrepid 2002-2004

For Chrysler Pacifica 2004

For Chrysler Prowler 2001-2002

For Chrysler Town & Country 2002-2003

For Chrysler Town & Country 2011-2016

For Chrysler Voyager 2002-2003

For Dodge C/V 2012-2016

For Dodge Caravan 2002-2003

For Dodge Challenger 2008-2019

For Dodge Charger 2009-2019

For Dodge Durango 2011-2015

For Dodge Grand Caravan 2001-2003

For Dodge Grand Caravan 2011-2019

For Dodge Intrepid 2002-2004

For Dodge Journey 2011-2019

For Dodge Viper 2003-2010

For Dodge Viper 2013-2018

For Fiat 500 2011-2019

For Fiat 500L 2014-2019

For Fiat 500E 2016

For Ford Expedition 2003-2006

For Ford Expedition 2018

For Ford Explorer 2002-2005

For Ford Explorer 2016-2019

For Ford Focus RS 2016-2018

For Ford Freestar 2004-2005

For Ford F-Series 2015-2019

For Ford F-Series Super Duty 2017-2019

For Ford Fusion 2017-2019

For Ford GT 2017-2019

For Ford Mustang 2015-2019

For Ford Ranger 2019

For Ford Transit 2019

For Freightliner Sprinter 2014-2018

For Genesis G70 2018-2019

For GMC Acadia 2007-2019

For GMC Canyon 2007-2012

For GMC Canyon 2013-2019

For GMC Savana 2008-2019

For GMC Sierra All 2004-2007

For GMC Sierra All 2007-2019

For GMC Terrain 2010-2019

For GMC Yukon All 2004-2006

For GMC Yukon All 2007-2019

For Hummer H2 2007-2009

For Hummer H3 2006-2010

For Hyundai Santa Fe 2019

For Hyundai Sonata 2015-2018

For Hyundai Tucson 2016-2018

For Infiniti QX30 2017-2018

For Isuzu i-290 / i-370 2007-2011

For Isuzu Rodeo 2004

For Jeep Grand Cherokee 2001-2004

For Jeep Grand Cherokee 2011-2015

For Jeep Liberty 2002-2004

For Jeep Wrangler 2013-2019

For Kia Stinger 2018-2019

For Lincoln Aviator 2003-2005

For Lincoln Continental 2017-2019

For Lincoln MKC 2018-2019

For Lincoln MKX 2016-2019

For Lincoln MKZ 2017-2019

For Lincoln Navigator 2003-2006

For Lincoln Navigator 2018-2019

For Lincoln Nautilus 2019

For Lotus Elise 2008-2011

For Lotus Evora 2010-2014

For Lotus Exige 2008-2011

For Maserati Ghibli 2013-2019

For Maserati Quattroporte 2014-2019

For Mercedes AMG GT 2016-2019

For Mercedes B Class 2014-2018

For Mercedes CL Class 2010-2014

For Mercedes CLA Class 2014-2019

For Mercedes CLK Class 2006-2009

For Mercedes CLS Class 2012-2018

For Mercedes G Class 2007-2018

For Mercedes GL Class 2010-2018

For Mercedes GLA Class 2015-2019

For Mercedes GLE Class 2016-2019

For Mercedes GLK Class 2010-2017

For Mercedes GLS Class 2017-2019

For Mercedes M Class 2010-2015

For Mercedes Metris 2016-2018

For Mercedes R Class 2010-2012

For Mercedes S Class 2010-2019

For Mercedes SL Class 2013-2019

For Mercedes SLC Class 2017-2018

For Mercedes SLK Class 2008-2018

For Mercedes SLS Class 2011-2015

For Mercedes Sprinter 2013-2018

For Mercury Monterey 2004-2005

For Mercury Mountaineer 2002-2005

For Mitsubishi Eclipse 2006-2012

For Mitsubishi Endeavor 2004-2011

For Mitsubishi Galant 2004-2012

For Mitsubishi Montero 2003-2006

For Plymouth Prowler 1997-2002

For Pontiac G3 2009-2010

For Pontiac G5 2008-2010

For Pontiac G6 2008-2010

For Pontiac G8 2008-2009

For Pontiac Grand Prix 2007-2008

For Pontiac Montana-SV6 2008-2009

For Pontiac Solstice 2008-2010

For Pontiac Torrent 2007-2009

For Ram Promaster 2014-2019

For Ram 1500 2010-2013

For Ram 1500 2019

For Ram 2500 2010-2013

For Ram 3500 2010-2013

For Ram 3500 Dually 2010-2013

For Ram 4500 2010-2013

For Ram 5500 2010-2013

For Retrofit SCH-BRK-4PC 2017

For Retrofit SCH-WRK-4PC 2017

For Retrofit SCHRFK4S 2018

For Rolls Royce Cullinan 2018-2019

For Rolls Royce Phantom 2017-2019

For Saab 9-3 2004-2007

For Saab 9-3 2008-2012

For Saab 9-4X 2011

For Saab 9-5 2004-2007

For Saab 9-5 2008-2009

For Saab 9-5 2010-2012

For Saturn Astra 2008-2009

For Saturn Aura 2007-2010

For Saturn Outlook 2007-2010

For Saturn Sky 2008-2009

For Saturn Vue 2007-2010

For Smart Fortwo 2008-2017

For Subaru Ascent 2019

For Subaru B9 Tribeca 2006-2007

For Subaru Crosstrek 2015-2017

For Subaru Crosstrek 2018-2019

For Subaru Forester 2008-2017

For Subaru Forester 2018-2019

For Subaru Impreza 2008-2016

For Subaru Impreza 2017-2019

For Subaru Impreza WRX 2009-2017

For Subaru Impreza WRX 2018-2019

For Subaru Impreza WRX STI 2009-2019

For Subaru Legacy 2004-2017

For Subaru Legacy 2018-2019

For Subaru Outback 2004-2017

For Subaru Outback 2018-2019

For Subaru Tribeca 2008-2014

For Subaru XV Crosstrek 2013-2016

For Suzuki Forenza 2007-2008

For Suzuki Grand Vitara 2005-2013

For Suzuki Reno 2007-2008

For Suzuki SX4 2007-2013

For Suzuki Verona 2005-2006

For Suzuki XL-7 2005-2006

For Suzuki XL-7 2007-2009

For Volvo S60 2004-2009

For Volvo S80 2004-2006

For Volvo V70 2004-2007

For Volvo XC60 2009-2010

For Volvo XC70 2004-2007

For Volvo XC90 2004-2014

Easy To Use:

No need install any software, only need install a 9V battery. Ensure that the vehicle is in the TPMS Learn Mode, and follow the service procedure. Hold tool against the sidewall of the tire, near the valve stem.

Depress the button above the device while holding the tool against the tire sidewall. When the car horn sounds,press the button below the device,the "TX"LED indicates that the tool is transmitting.

Steps to set car in TPMS Re-Learn mode:

For GM series vehicles:

1. Set the parking brake, turn the ignition switch to ON/RUN with the engine off.

2. Type A - Choose TPMS relearn mode in the dashboard setting, hold pressing the key for 5 seconds.

    Type B - Choose TPMS relearn mode in the dashboard setting, press and hold SET/RESET button until a double horn chirp sounds.

    Type C - Press the Remote Keyless Entry (RKE) transmitter's LOCK and UNLOCK buttons at the same time for 5 seconds.

3. Horn will sound twice and TPMS indicator flashes, then learning mode has been entered successfully. Start from the driver side front tire (LF).

For Ford series vehicles:

1. Set the parking brake.

2. Ensure ignition switch to OFF, press and release the brake pedal for 1 time.

3. Cycle ignition from OFF to RUN position 3 times, ending in RUN position.

4. Press and release brake pedal.

5. Turn ignition OFF position.

6. Cycle ignition from OFF to RUN position 3 times, ending in RUN position.

7. Horn will sound once and TPMS telltale will blink once train mode is initiated. If equipped with message center, it will display TRAIN LF TIRE. Start from driver side front tire (LF) .

With Integrated Key FOB (actual key contained in key FOB) Push button start:

1. With vehicle off, press and release the brake pedal.

2. Using the push button, press and hold the button until the vehicle goes to acessory mode ( ACC Mode).

Warning do not push release too quickly.

Push - Wait for sound - Release.

3. Power off by pushing the button 1 tme.

4. Repeat 2 more times, ending in ACC mode.

5. Press and release the brake dedal, then turn vehicle off.

6. Using the push button, press and hold the button until the vehicle goes to acessory mode.

7. Power off by pusing the button 1 time.

8. Repeat 2 more times, ending in ACC mode.

9. Horn will sound once and TPMS telltable will blink once train mode is initiated. Starting from LF tire.

Other brands cars enter to relearn mode please refer to car user manual

Pro Tips:

1. 9V battery shold be in good condition: New & fully charged.

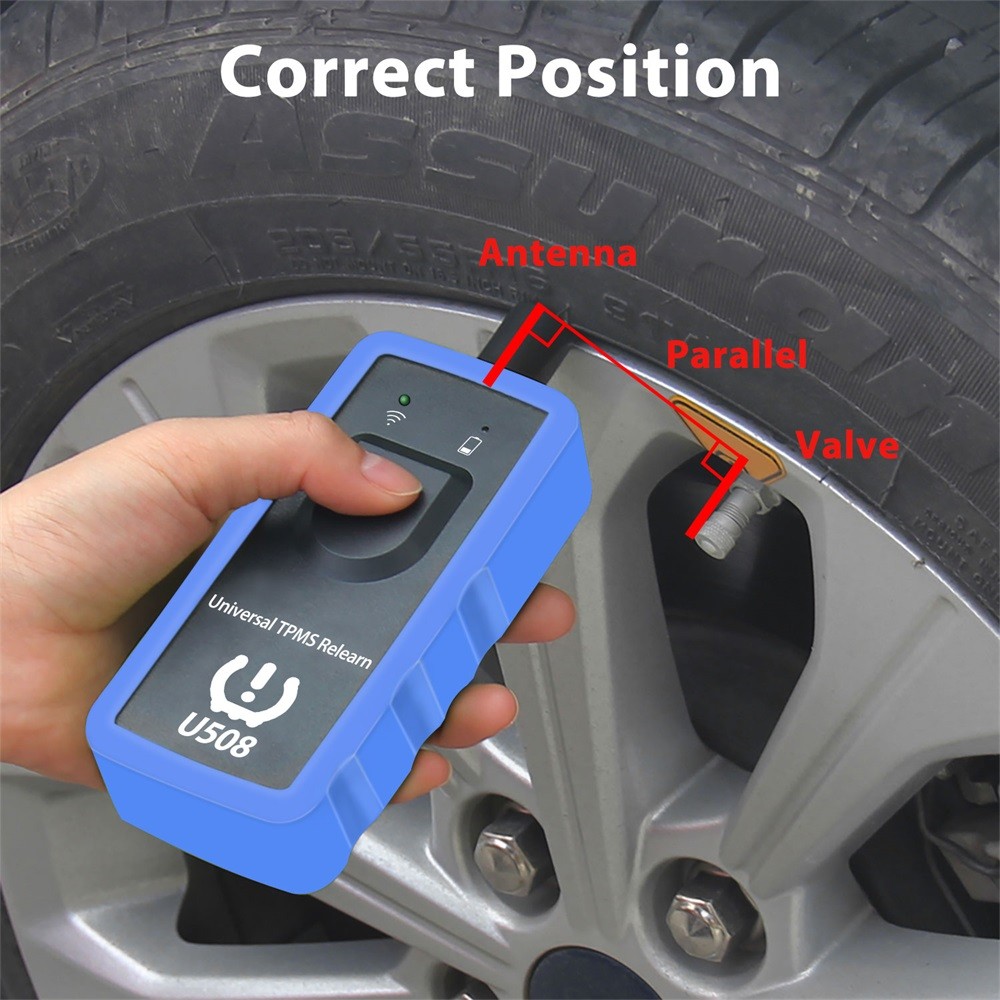

2. Make sure antenna fits in CORRECT position.

3. Do tire reset outside instead of in the garage.

4. Position of tires are also important, front tires have to be straight.

5. Sensors should be original / OEM sensors which are already well programmed.

6. Kepp pressing the power button to send signal until it succeeded.

8. Be sure all other sensors are out of range of vehicle antenna (10 ft range min).

9. Disable all other WIFI/Bluetooth and electronic accessory devices.

Includs HID kits, car audio systems, navigation, back-up cameras, if NOT original equipment, these devices may cause RF disruption.
